C3010001

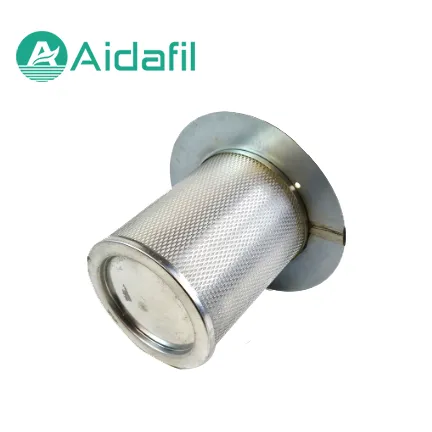

C3010001 is High-efficiency oil-gas separator element (commonly known as oil separator core) designed for screw air compressors. As the core filtering component of the air circuit system of the air compressor, it is mainly responsible for thoroughly separating the mist-like lubricating oil mixed in the compressed air, so as to supply clean, oil-free and high-quality compressed air to the gas-using equipment at the rear end.

Four Core Advantages

• Ultra-high separation efficiency to guarantee gas purity:

Adopting advanced coalescing filtration technology, it can strictly control the oil content of outlet compressed air below 3 ppm. There is almost no oil residue in the rear pipeline, effectively protecting your precision gas-using equipment and pneumatic components.

• Imported high-quality filter media with stable pressure resistance:

The inner filter layer is made of imported ultra-fine glass fiber composite material from HV (USA) or Binzer (Germany). The multi-stage gradient filtration design features not only extremely low initial resistance (≤0.02 MPa), but also strong resistance to breakdown under continuous high-pressure working conditions.

• High-strength frame to prevent deformation and collapse:

Both the inner and outer supporting protective screens adopt thickened digitally punched anti-corrosion steel plates, fixed by special rolling and spot welding processes. It boasts excellent pressure difference resistance and can maintain structural integrity even under long-term overdue service or sudden high pressure difference impacts.

• Dual electrostatic protection to ensure operational safety:

Highly conductive electrostatic grounding strips are built into the edge of the flange and the sealing gasket. They can instantly release static charges generated by the friction of high-speed airflow on the filter element, completely eliminating the risk of air compressor internal combustion or explosion caused by static sparks.
